[Splunk] Splunk Architecture : From Log Ingestion to Scalable Security Analytics

1. Why Splunk Architecture Matters in SIEM and DevSecOps

Splunk is often described as a Data-to-Everything platform, but in SIEM and DevSecOps environments, its real value comes from how it processes data at scale.

Handling hundreds of gigabytes-or even terabytes-of logs per day is not just about collecting data. It requires :

• Predictable ingestion performance
• Fast and repeatable search execution
• Clear separation between ingestion, processing, and analysis
• Operational flexibility when detection logic changes

Splunk's architecture is designed specifically to meet these requirements, and every major component exists to enforce this separation.

---

2. Architectural Principle : Separation of Responsibility

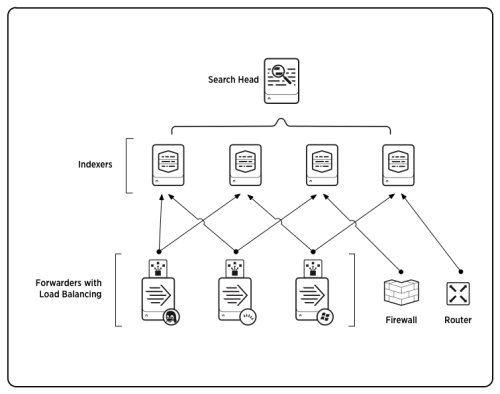

source: splunk - Components of a Splunk Enterprise deployment

At a high level, Splunk enforces three distince responsibilities:

Responsibility	Component
Data Collection	Universal Forwarder (UF)
Data processing & indexing	Indexer
Search & analytics	Search Head (SH)



This separation is not optional - it is the core reason Splunk sclaes reliably.

If collection, parsing, indexing, and searching happened in the same layer :

• Ingestion spikes would slow analyst searches.
• Complex searches would impact data collection.
• Scaling decisions would become unpredictable.

Splunk avoids this by isolating workloads by role.

---

3. Universal Forwarder (UF) : Why "Less" Is More

The Universal Forwarder is a lightweight agent responsible only for data ingestion.



UF Responsibilities

• Performs basic line breaking
• Collects logs from files, ports, WinEventLog, etc. (based on inputs.conf )
• Forwards raw data to Indexers via TCP (configured via outputs.conf)
• Uses very low CPU and memory, suitable for deployment on thousands of servers



What UF Does Not Do -- and Why

UF does not:

• Extract fields
• Normalize timestamps
• Apply parsing rules

This is a deliberate designe choice.



If UF performed full parsing:

• Parsing logic would need to be maintained on thousands of endpoints.
• Endpoint resource usage would increase.
• Ingestion performance would vary across hosts



By keeping UF "dumb," Splunk ensures:

• Consistent ingestion behavior
• Centralized parsing control
• Easy large-scale deployment

This explains why props.conf and transforms.conf are never meant to live on UF.

---

4. Reliable Data Transfer : UF → Indexer

UF forwards data to Indexers using TCP with acknowledgement (ACK).



This choice prioritizes reliability over raw throughput:

• Data is not dropped during network instability.
• Indexers can apply backpressure when overloaded.
• Ingestion remains consistent under high load.

In SIEM environments, delayed logs are acceptable. Lost logs are not.

---

5. Indexer : The Real Engine of Splunk

The Indexer is the most critical and resource-intensive component in Splunk.



Indexer Responsibilities

1. Receives raw data from Forwarders
2. Parses and indexes incoming data according to rules defined in props.conf and transforms.conf
   • Applies parsing rules (timestamp extraction, field extraction)
   • Indexes data and stores rawdata and metadata (tsidx)
3. Serves search requests from Search Heads

Becuase it handles CPU-heavy parsing and disk-heavy indexing, the Indexer is almost always the first scaling bottleneck.

---

5-1. Parsing vs. Indexing : Why They Are Separate Stages

Parsing Stage

Parsing occurs before data is written to disk and include:

• Timestamp extraction
• Line Breaking (if not already done)
• Application of rules from props.conf and transformers.conf

Parsing defines how events are structured, not how they are searched.



Once parsing decisions are made, they are difficult to undo.



Indexing Stage

Indexing is responsible for

• Writing raw events to disk.
• Creating tsidx (time-series index) files
• Organizing data into searchable buckets.

At this point, data becomes searchable - but not fully analyzed.



This separation explains why :

• Parsing errors are hard to recover from
• Index-time decisions must be conservative
• Not all fields should be extracted at index-time.

---

5-2. tsidx Files : Why Splunk Searches Are Fast

When data is indexed, Splunk generates tsidx files.



What tsidx Contains

• Event timestamps
• Index-time fields (index, sourcetype, host, source)
• Term metadata used for fast filtering

What tsidx Does Not Contain

• Full raw event text
• Searh-time extracted fields
• Dynamic or computed fields



During a search :

1. Splunk first consults tsidx to find candidate events
2. Only then does it read rawdata if needed

This explains several important behaviors:

• Time-based searches (tsidx searches) are extremely fast.
• Reading rawdata is the most expensive operation
• Reducing rawdata reads is the key to performance tuning.

---

source : Splunk - Search

6. Search Head (SH) : Execution Without Processing

The Search Head is not a data processing node.

SH Responsibilities

• Executes SPL (Search Processing Language)
• Coordinates distributed searches to Indexers
• Builds dashboards, alerts, and reports
• Manages search schedules and alert triggers

Search Heads send search logic to Indexers, and Indexers return results.



This explains why:

• Adding SHs improves concurrency.
• Adding SHs does not fix slow searches
• Search performance issues usually point to Indexers.

---

7. Splunk Configuration Philosophy

Splunk configuration is entirely driven by configuration files composed of stanzas and settings. Each file has a clear and non-overlapping responsibility, and understanding where and when each file is applied is critical to correct data onboarding and troubleshooting.

Splunk does not process configuration files arbitratily. Each file participates in a specific stage of the ingestion pipeline.



7-1. inputs.conf - What data is collected

Role in the pipeline

• Stage : Data ingestion (on Forwarder or Indexer)
• Purpose : Define what data to collect and basic metadata.

"Which data should Splunk read, and how should it be labeled initially?"

[monitor:///var/log/secure]
sourcetype=linux_secure
index=security



What actually happens

• Splunk starts monitoring /var/log/secure
• Each new line is treated as raw input
• Metadata is attached :
  • sourcetype = linux_secure
  • index = security

---

7-2. outputs.conf - Where the data goes

Role in the pipeline

• Stage : Data forwarding
• Purpose : Define how and where data is sent

"Where should collected data be forwarded?"

[tcpout:indexer_group]
server = 10.0.1.10:9997,10.0.1.11:9997



What actually happens

• Data collected via inputs.conf is sent to Indexers.
• Communication uses TCP with acknowlegement
• Indexers can apply backpressure if overloaded
• outputs.conf does not control parsing, it only controls transport.

---

7-3. props.conf - What should be parsed

Role in the pipeline

• Stage : Parsing (on Indexer)
• Purpose : Define how raw data should be interpreted

"How should Splunk interpret this raw data?"



What actually does

• Event line breaking
• Timestamp extraction
• Character encoding
• Declaring parsing rules
• Linking to transforms

[linux_secure]
TIME_PREFIX = ^
TIME_FORMAT = %b %d %H:%M:%S
MAX_TIMESTAMP_LOOKAHEAD = 15
TRANSFORMS-extract_user = extract_user_from_message



What actually happens

• When data with sourcetype=linux_secure arrives
• Splunk extracts timestamps based on these rules
• Correct timestamps are assigned before indexing.
• 'TRANSFORMS-extract_user' tells Splunk that "Apply a transform called extract_user_from_message"

---

7-4. transforms.conf - How data is modified

Role in the pipeline

• Stage : Parsing (called from props.conf)
• Purpose : Perform regex-based actions

"What exact action should Splunk perform on the data?"

[extract_user_from_message]
REGEX = user=(\w+)
FORMAT = user::$1



What actually happens

• Regex is applied to the raw event
• Captured value is extracted as a field
• Fields becomes available at search time
• The extracted field is not indexed. (It exists only when searching)

---

7-5. Why props.conf and transforms.conf Must Be Seperate

Splunk deliberately separates:

File	Responsibility
props.conf	Declares intent
transforms.conf	Implements logic



Operational benefits

• Easier debugging → "Is the transform called?" vs. "Is the regex wrong?"
• Safer change management → Reuse transforms without modifying parsing rules
• Clear ownership  → Parsing logic vs. Execution logic

---

8. Conclusion : Architecture First, Detection Second

In DevSecOps and SOC environments, successful Splunk usage follows a clear principle :

Architecture first, detection second.



By designing ingestion, parsing, and indexing correctly, Splunk becomes a robust foundation for real-time detection, observability, and scalable security analytics -- allowing detection logic to evolve without compromising performance or reliablity.

---
